美國Swanstrom M138-2剪鉗具有微型尖錐頭,用于對導絲、樹脂導管材質精確點剪切,在切割末端部位上留下完全平整的斷面和極小的夾痕,NON-CARBIDE非碳化鎢鋼刀刃鉗子尖部厚度僅1.0mm,應用于醫療器械及精密電子領域剪微小的軟性材料。
美國Swanstrom M-Series Medical Grade Cutters系列剪鉗專為醫療器械導線組件剪切設計,采用高鉻、高碳硬質合金鋼鍛造而成,特殊熱處理工藝硬化使其具有高強度和耐久性,可對鎳鈦合金、鋼琴絲、金鉑絲及不銹鋼等特殊材質制成的guide wires導絲、stents支架、catheters導管、Stylists、mandrels心軸、braided mesh編織網進行精確一致的剪切。

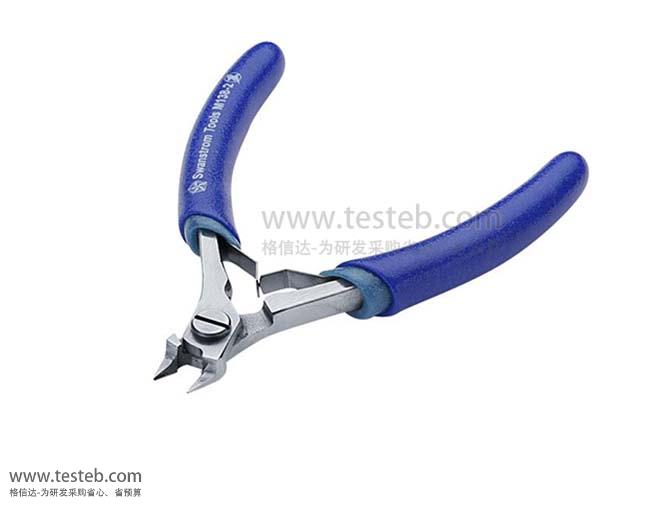

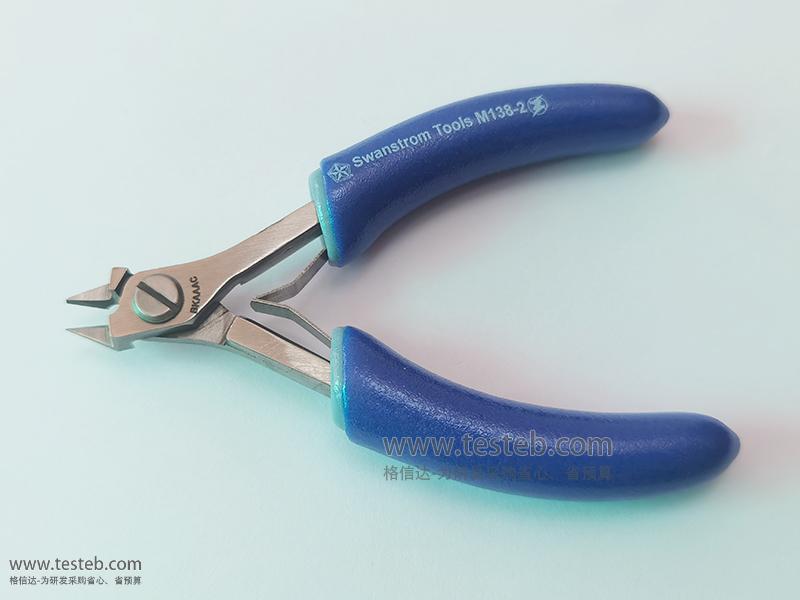

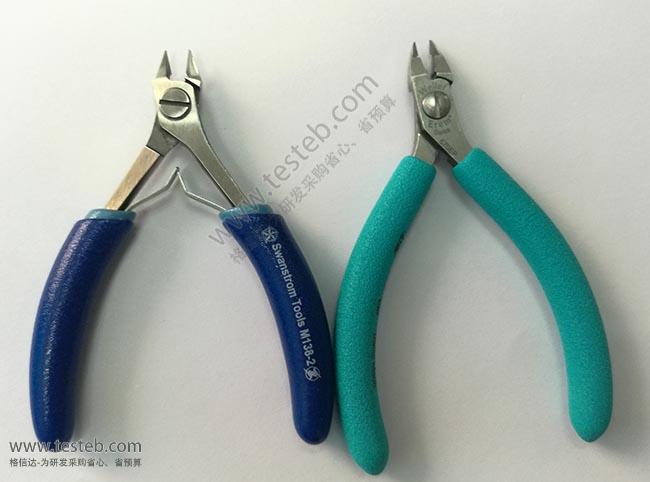

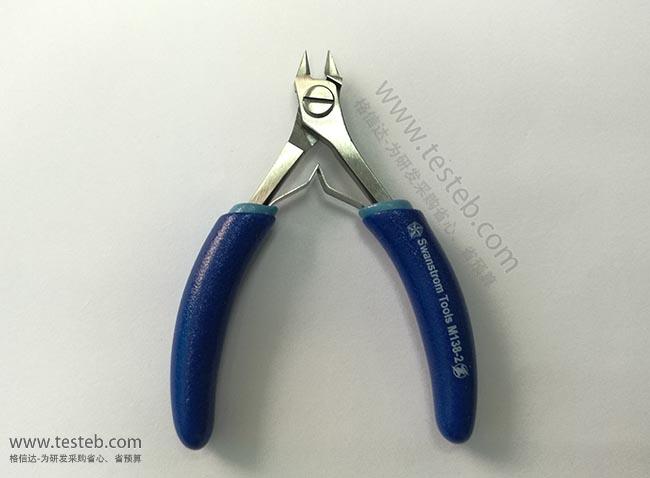

Swanstrom M138-2剪鉗具有微型尖錐頭,尖部厚度僅為1mm,可用在狹小且難以接近的地方,操作時只需要很小的剪切壓力,剪斷部位末端留下完全平整的斷面和極小的夾痕,獲得超級齊平切口效果。Swanstrom M138-2剪切鉗NON-CARBIDE非碳化鎢鋼刀刃,帶有雙層泡沫塑料防靜電手柄,鉗子全長107mm。
型號 | 鉗口類型 | 剪切口效果 | Hard硬線剪徑 | MedHard中等硬度 | Soft軟線直徑 | 鉗頭規格尺寸 |
M401C標準短柄 M401EC長柄 |
錐形 | 完全齊平 |
0.5mm 24awg/0.020" |
0.6mm 22awg/0.025" |
1mm 18awg/0.040" |
長12.7mm、寬11.2mm、 尖部厚1.2mm,全長120mm |
M403C剪鉗 M403EC長柄 |
錐形點剪切 | 完全齊平 |
0.4mm 26awg/0.016" |
0.5mm 24awg/0.020" |
1mm 18awg/0.040" |
長7.6mm、寬11.2mm、 尖部厚1mm, 鉗子長120mm / 142mm |
M405C剪鉗 M405EC長柄 |
尖錐形 點剪切 |
完全齊平 |
0.3mm 28awg/0.012" |
0.4mm 26awg/0.016" |
0.8mm 20awg/0.032" |
長10mm、寬11.2mm、 尖部厚0.8mm |
M4051C |
尖錐形 微細點剪切 |
完全齊平 |
0.25mm 30awg/0.010" |
0.4mm 26awg/0.016" |
0.6mm 22awg/0.025" |
長7.36mm、寬11.2mm、 尖部厚0.5mm |
M407C M407EC |
尖錐超銳尖 點切 |
完全齊平 |
0.25mm 30awg/0.010" |
0.3mm 28awg/0.012" |
0.6mm 22awg/0.025" |
長11mm、寬11.2mm、 尖部厚0.8mm |
M409C剪鉗 M409EC長柄 |
橢圓頭 | 完全齊平 |
0.5mm 24awg/0.020" |
0.8mm 20awg/0.032" |
1.3mm 16awg/0.050" |
長6.36mm、寬11.2mm、 尖部厚2mm |
M4011C剪絲鉗 |
錐形 特殊打磨 |
完全齊平 |
0.6mm 22awg/0.025" |
1mm 18awg/0.040" |
1.6mm 16awg/0.064" |
長7.36mm、寬11.2mm、 尖部厚1.2mm,全長120mm |
M138-2尖錐剪鉗 |
微型尖錐頭 點剪切 |
超級齊平 剪膠管 |
NON-CARBIDE非碳化鎢鋼刀刃,不適合剪硬線 |
長7.1mm、寬10mm、 尖部厚1mm,全長107mm |
||
M140 M140E |
橢圓頭 | 半齊平 |
0.2mm 32awg/0.008" |
0.5mm 24awg/0.020" |
1mm 18awg/0.040" |
長8.9mm、寬10.16mm、 尖部厚1mm |
M410 M410E |
橢圓頭 | 半齊平 |
0.25mm 30awg/0.010" |
0.6mm 22awg/0.025" |
1.3mm 16awg/0.050" |
長11.2mm、寬11.2mm、 尖部厚1mm |
M411 M411E |
橢圓頭 | 完全齊平 |
0.2mm 32awg/0.008" |
0.4mm 26awg/0.016" |
0.8mm 20awg/0.032" |
長11.2mm、寬11.2mm、 尖部厚1mm |
M610大剪鉗 M610E |
大型橢圓頭 | 半齊平 |
1.3mm 16awg/0.050" |
2.0mm 12awg/0.081" |
2.6mm 10awg/0.102" |
長20.3mm、寬15.2mm、 尖部厚2.28mm,137/150mm |
M409 M409E |
橢圓短頭 | 半齊平 |
0.3mm 28awg/0.012" |
0.8mm 20awg/0.032" |
1mm 18awg/0.040" |
長7.36mm、寬11.43mm、 尖部厚1.27mm |
M509剪鉗 M509E |
橢圓短頭 | 半齊平 |
0.5mm 24awg/0.020" |
1mm 18awg/0.040" |
1.6mm 14awg/0.064" |
長8.4mm、寬12.7mm、 尖部厚2.0mm |
M533 M533E |
橢圓短頭 | 半齊平 |
0.4mm 26awg/0.016" |
0.6mm 22awg/0.025" |
1.3mm 16awg/0.050" |
長8.6mm、寬13.2mm、 尖部厚1.78mm |
M609 M609E |
橢圓短頭 | 半齊平 |
1mm 18awg/0.040" |
1.6mm 14awg/0.064" |
2.0mm 12awg/0.081" |
長11.2mm、寬15.2mm、 尖部厚2.28mm |
請根據線材規格特點選擇對應型號,避免超出剪徑范圍使用以保護使用壽命;不適用于Beadalon®或記憶鋼絲線。
Sipel型號 | 描述 | 瑞士Erem | Lindstrom | 美國Excelta |
Carbide Tapered Head Diagonal Cutters | ||||
M401C | Small Carbide Tapered Diagonal Cutter Full- Flush | 576TX2 | - | - |
M403C | Small Carbide Tapered Fine Tip Diag Cutter Full-Flush |
576TX醫療剪鉗 2476TX1長柄款 |
- | 7247EHT |
M405C | Small Carbide Tapered Ultra Sharp Tip Diag Cutter Full-Flush | 576TX1 | - | - |
M405-1C* | Small Carbide Tapered Ultra Sharp Micro Tip Diag Cutter Full-Flush | 576TX | - | 7237EH |
M407C | Small Carbide Dual Ultra Sharp Tip Diagonal Cutter Full-Flush | 576TX | - | - |
M409C | Small Carbide Oval Diagonal Cutter Semi-Flush | 599T剪鉗 | - | - |
M4011C* | Small Carbide Tapered Diagonal Cutter "Special Hone" | - | - | - |
Carbide Tapered Head Diag Cutters- Ergonomic Handles | ||||
M401EC | Ergo Small Carbide Tapered Diagonal Cutter Full-Flush | 2476TX2 | - | - |
M403EC | Ergo SM Carbide Tapered Fine Tip Diag Cutter Full-Flush | 2476TX2 | - | - |
M405EC | Ergo SM Carbide Tapered Ultra Sharp Tip Diag Cutter Full-Flush | 2476TX1 | - | - |
M407EC | Ergo SM Carbide Dual Tapered Ultra Sharp Diag Cutter Full- Flush | - | - | - |
M409EC | Ergo SM carbide Tapered Diagonal Cutter Semi-Flush | - | - | - |
Oval Head Diagonal Cutters | ||||
M140 | Small Oval Diagonal Cutter Semi-Flush | - | 8130 | 7230E |
M410 | Small Oval Diagonal Cutter Semi-Flush | 612N | 8140 | 7240E |
M411 | Small Oval Diagonal Cutter Full-Flush | 622NA | 8141 | 7241E |
M610 | Large Oval Diagonal Cutter Semi-Flush | 812N | 8163 | ^8160E1 |
Oval Head Diagonal Cutters- Ergonomic Handles | ||||
M140E | Small Ergo Oval Diagonal Cutter Semi-Flush | - | RX8130 | 7130E |
M410E | Small Ergo Oval Diagonal Cutter Semi-Flush | E612N | RX8140 | 7140E |
M411E | Small Ergo Oval Diagonal Cutter Full- Flush | E622N | RX8141 | 7241E |
M610E | Large Ergo Diagonal Cutter Semi-Flush | - | 7250E | - |
Short Nose / High Leverage Diagonal Cutters | ||||
M409 | Small Short Nose Diagonal Cutter Semi-Flush | **612N | **8130 | **7130E |
M509 | Medium Short Nose Diagonal Cutter Semi-Flush | **512N | **8150 | **7140E |
M533 | Medium Short Nose Diagonal Cutter Semi-Flush | **512N | **8150 | **7140E |
M609 | Large Short Nose Diagonal Cutter Semi-Flush | **812N | **8160 | **7150E |
Short Nose/High Leverage Diag Cutters- Ergonomic Handles | ||||
M409E | Small Ergo Short Nose Diagonal Cutter Semi-Flush | **2412E | **RX8140 | **7240E |
M509E | Medium Ergo Short Nose Diagonal Cutter Semi-Flush | **2412E | **Rx8150 | **7243E |
M533E | Medium Ergo Short Nose Diagonal Cutter Semi-Flush | **2412E | **RX8150 | **7243E |
M609E | Large Ergo Short Nose Diagonal Cutter Semi-Flush | - | **RX8160 | **7250E |
Micro Miniture Tapered Relieved Cutter | ||||
M138-2 | Miniature Tapered-Relived Diagonal Cutter Super Flush | 670EP尖口剪 | 8130 | 7237E |
對比文檔http://www.oznappies.com/download/201806/Sipel_Erem_Lindstrom_Excelta.pdf
